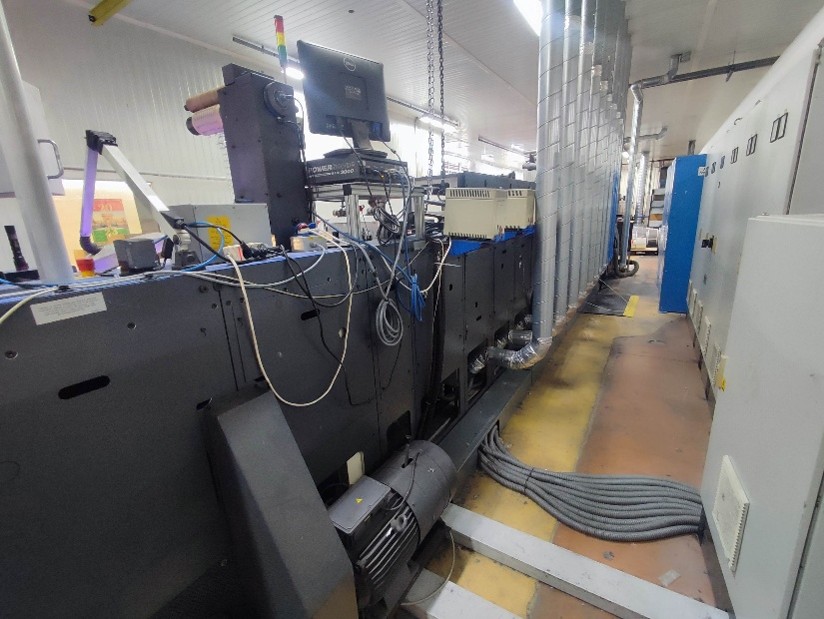

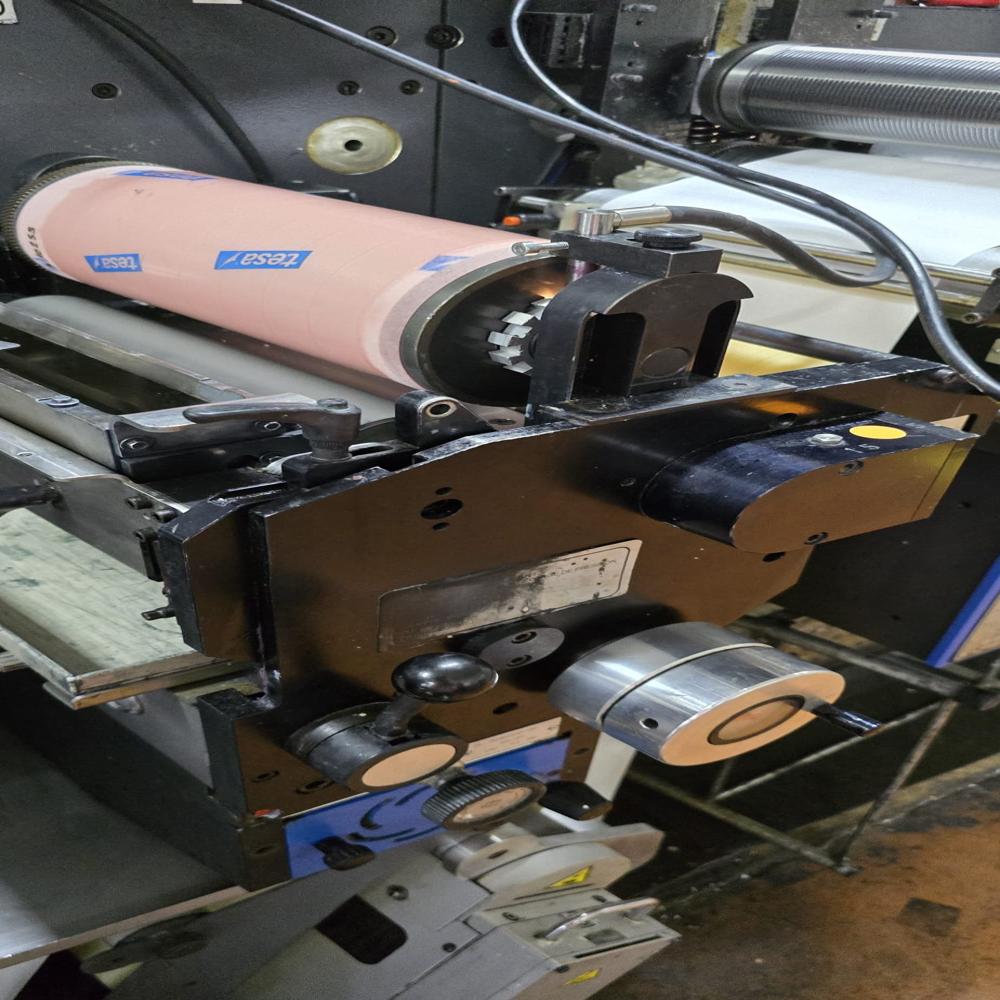

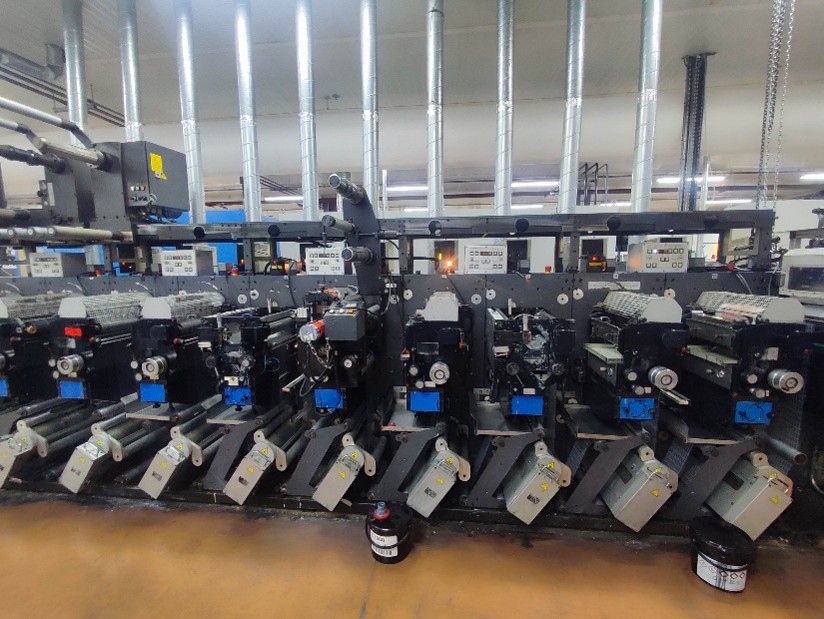

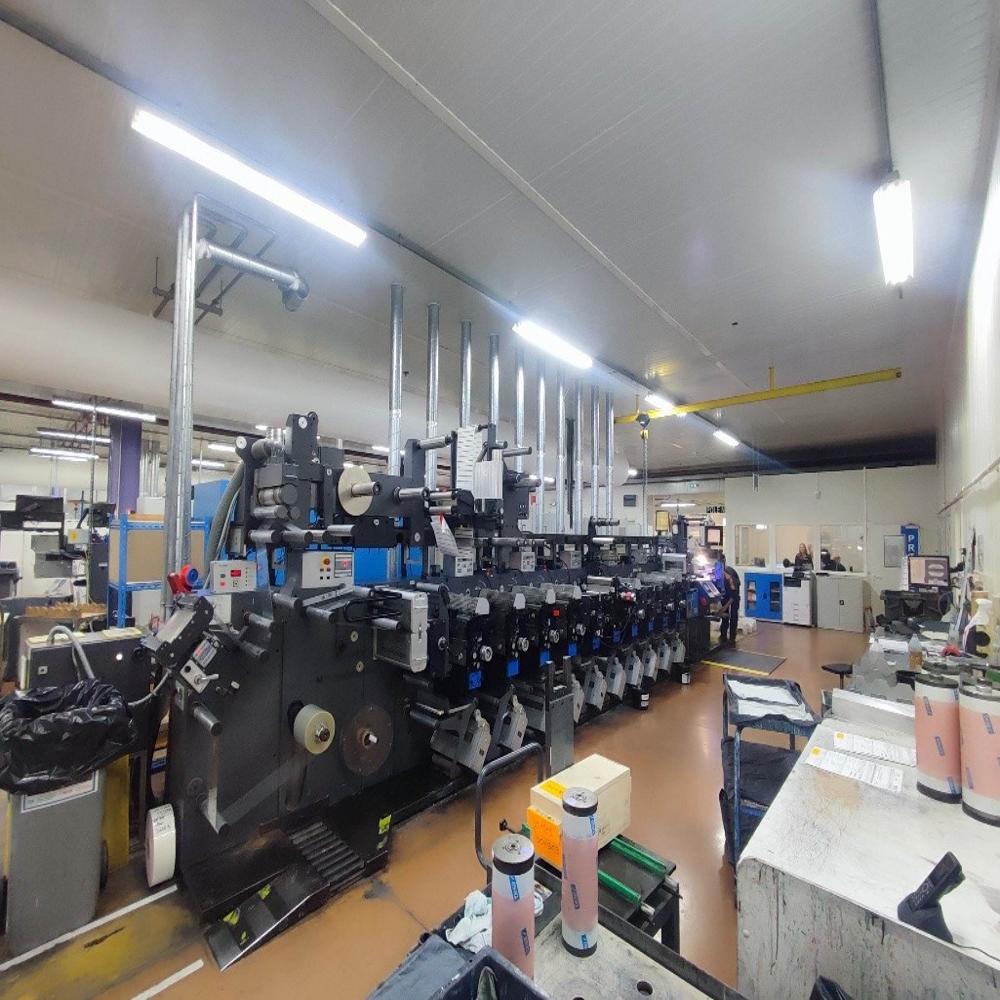

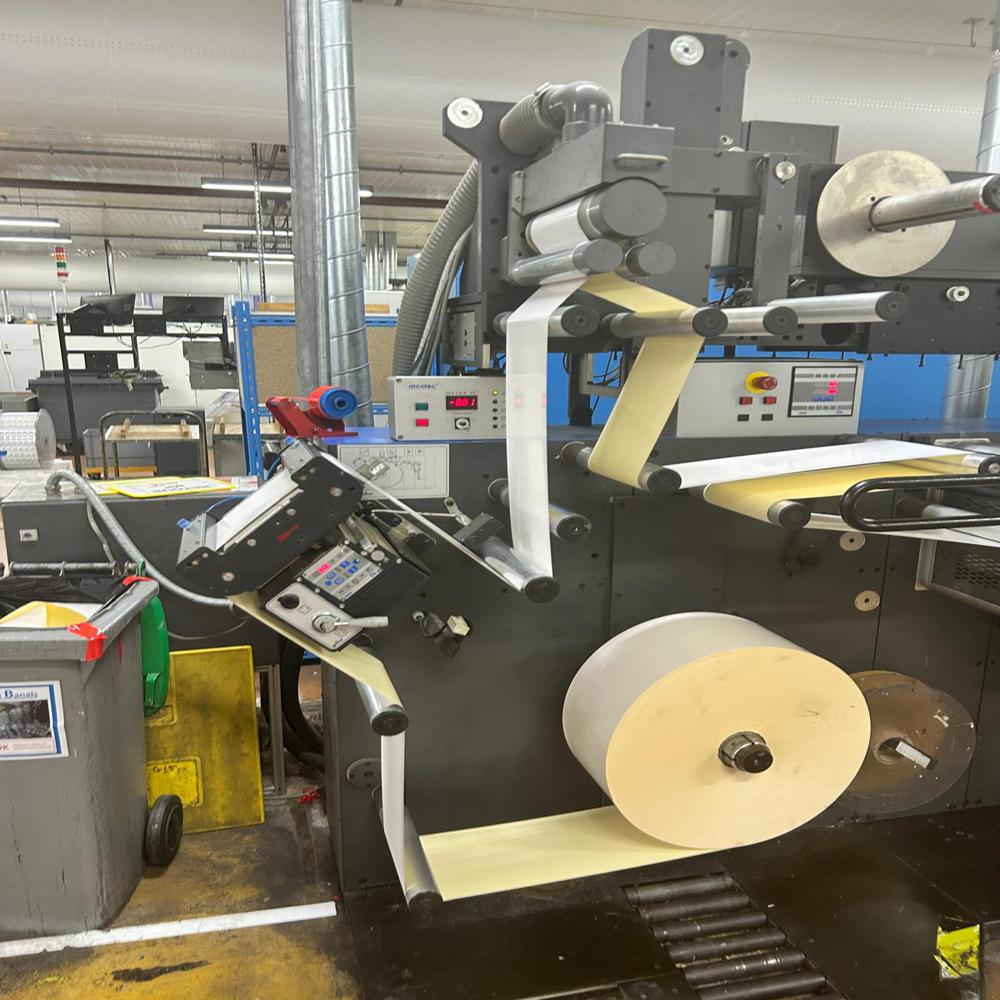

2007 Gallus EM280-10 Color UV flexographic label printer

Send Inquiry

Request To Call Back

2007 Gallus EM280-10 Color UV flexographic label printer

Name: 2007 Gallus EM280-10 Color UV flexographic label printer
Brand: Shri Export Import LLC
Price: 0.10 INR
Availability: InStock

Price 0.10 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

2007 Gallus EM280-10 Color UV flexographic label printer Specification

Product Type
Flexographic Label Printing Machine

General Use
Self-adhesive labels, packaging labels, shrink sleeves, in-mould labels production

Printing Material
Paper, film, foil, self-adhesive materials

Type
UV Flexographic

Capacity
Up to 150 m/min (depending on job and substrate)

Weight (kg)
Approx. 7,800 kg

Computerized
Yes

Automatic
Yes

Feeding Size
280 mm web width

Printing Length
178 - 480 mm (repeat range)

Printing Width
Up to 280 mm

Printing Thickness
Substrate thickness range: 15 - 300 m

Mechanical Speed
Up to 150 m/min

Printing Speed
Up to 150 m/min

Voltage
400 V, 50/60 Hz (standard European industrial supply)

Dimension (L*W*H)
Approx. 10,000 x 2,100 x 2,500 mm (varies with configuration)

Feature
10 Color, UV curing, modular design, quick-change units, inline finishing options

Color
Typically Blue/Black/White (as shown in image)

Slitting Unit
Available as option

Web Guide System
Yes, precision web guiding for accurate registration

Waste Matrix Removal
Yes, with matrix rewinder

Printing Plate Type
Photopolymer

Register Control
Automatic register control

Operator Interface
Touchscreen control and manual adjustment options

Die-Cutting Options
In-line rotary die-cutting compatible

Rewinder/Unwinder
Integrated automatic rewinder and unwinder units

Year of Manufacture
2007

Number of Colors
10

Image Inspection System
Optional inline 100% inspection system support

Drying System
UV curing lamps per print station

Compression Air Supply
Required for pneumatic operations

Tension Control
Automatic electronic web tension control

2007 Gallus EM280-10 Color UV flexographic label printer Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
30 Days

2007 Gallus EM280-10 Color UV flexographic label printer About

*As an Owner we would Like to Offer*

*GALLUS EM 280 10 COLOR FLEXO LABEL PRESS*

*Model: EM 280*

Year: 2007

*Serial No.: 2178*

Web Width: 280 mm

*Location: Europe*

Condition: In mint Condition

*PRESS CONFIGURATION*

10 Printing Stations

9 Flexographic Printing Heads

1 Rotary Screen Printing Head

9 Anilox Chamber Systems

Duo Label Attachment Label-on-Label

*Sensotec Automatic Register Control*

Touch Screen Control

*Servo Infeed & Servo Outfeed*

*WEB HANDLING & INSPECTION*

Unwinder

Web Guide

*BST Web Video Inspection*

Corona Treater

*UV CURING & CHILLING*

10 IST UV Lamps

*10 Chilled Rollers*

*LAMINATION & SPECIAL APPLICATIONS*

Movable Lamination Unit

Turn Bar

*DIE CUTTING & FINISHING*

1 Rotary Die Cutting Station

GAP MASTER

Waste Rewinder

Product Rewinder

*TOOLING INCLUDED*

6 Sets Print Cylinders

6 Magnetic Cylinders

10 Anilox Rollers

*Made in Switzerland*.

Excellent Condition

*Available in Europe*

Versatile High-Performance Printing

With its 10-color UV flexographic units and adaptable modular structure, the Gallus EM280 seamlessly processes a broad substrate range, from thin films to thick label stocks. Its automatic register and tension controls, alongside quick-change modules, enable efficient production changeovers, keeping downtime minimal and output high.

Precision Engineering for Consistent Output

Advanced web guiding and register automation combine to deliver reliable, razor-sharp prints every time. An integrated touchscreen interface provides intuitive operation, while features like automatic plate lifting and optional inline inspection elevate print quality to meet demanding industry standards.

FAQ's of 2007 Gallus EM280-10 Color UV flexographic label printer:

Q: How does the 2007 Gallus EM280-10 ensure accurate registration during high-speed printing?

A: The EM280-10 is equipped with precision web guiding and automatic register control systems. These maintain perfect alignment of the substrate and print, even at speeds up to 150 m/min, ensuring consistent and sharp label output.

Q: What materials can be used on this flexographic label printer?

A: This press can print on paper, film, foil, and self-adhesive substrates within a thickness range of 15 to 300 microns, accommodating a variety of label and packaging applications.

Q: When is inline rotary die-cutting and slitting available on the EM280-10?

A: Inline rotary die-cutting is compatible with this press as standard, while the slitting unit is available as an optional feature. Both enable you to finish labels directly during the printing process, enhancing workflow efficiency.

Q: Where can the Gallus EM280-10 be installed, and what are its power requirements?

A: This machine is suitable for industrial print facilities and requires a standard European industrial power supply of 400 V at 50/60 Hz. Due to its substantial dimensions (approx. 10,000 x 2,100 x 2,500 mm), adequate production space is necessary.

Q: What benefits does the integrated automatic rewinder/unwinder system offer?

A: Integrated rewinder and unwinder units streamline continuous substrate handling, minimize manual intervention, and support sustained high-speed operation, helping to maximize productivity.

Q: How does the EM280-10 support print quality monitoring during production?

A: An optional inline 100% image inspection system can be integrated, providing real-time monitoring of print quality to quickly identify and correct defects, ensuring flawless finished labels.

Q: What is the process for plate changes and set up on this machine?

A: Plate changes are straightforward thanks to photopolymer printing plates and an automatic plate cylinder lifting system, which together reduce setup times and allow for quicker job changeovers.
