2011 Gallus EM 280-8 Color Flexo Printing Machine

Send Inquiry

Request To Call Back

2011 Gallus EM 280-8 Color Flexo Printing Machine

Get a Price/Quote

MOQ : 1 Unit

2011 Gallus EM 280-8 Color Flexo Printing Machine Specification

Product Type
Flexo Printing Machine

General Use
Label and narrow web printing, flexible packaging and self-adhesive labels

Printing Material
Paper, film, foils, laminates

Type
Gallus EM 280, 8 Color

Capacity
Suitable for high-volume continuous printing

Weight (kg)
Approx. 5000 kg

Computerized
Yes

Automatic
Yes

Control System
Touch screen PLC based control system

EPS System
Equipped (Electronic Print Setting)

Feeding Size
Up to 280 mm web width

Printing Length
190-457 mm repeat length (variable by cylinder)

Printing Width
Max 280 mm

Printing Thickness
Handles substrate thickness 12-300 microns

Printing Plate Lifting System
Automatic plate lifting and pre-register

Mechanical Speed
Maximum 150 m/min

Printing Speed
Up to 150 m/min

Voltage
380-415V, 50/60Hz, 3-phase

Dimension (L*W*H)
Approx. 8500 x 1800 x 2000 mm

Feature
Multi-color, modular construction, high register accuracy, fast changeover

Color
Standard industrial blue and gray

Remote Diagnostics
Enabled (for service and support)

Slitting Unit
Integrated slitting module

Waste Matrix Rewinder
Yes, for label waste removal

Year of Manufacture
2011

Unwinder/Rewinder
Servo driven unwinder and rewinder

Tension Control
Automatic web tension control system

Print Cylinder
Interchangeable print cylinders

Number of Colors
8 (Eight Color Units)

Web Guide System
Electronic web guide for precise control

Register System
Automatic longitudinal and lateral registration

Die Cutting
In-line rotary die cutting station

Drying System
Hot air and UV drying units included

2011 Gallus EM 280-8 Color Flexo Printing Machine About

As an owner we would like to offer

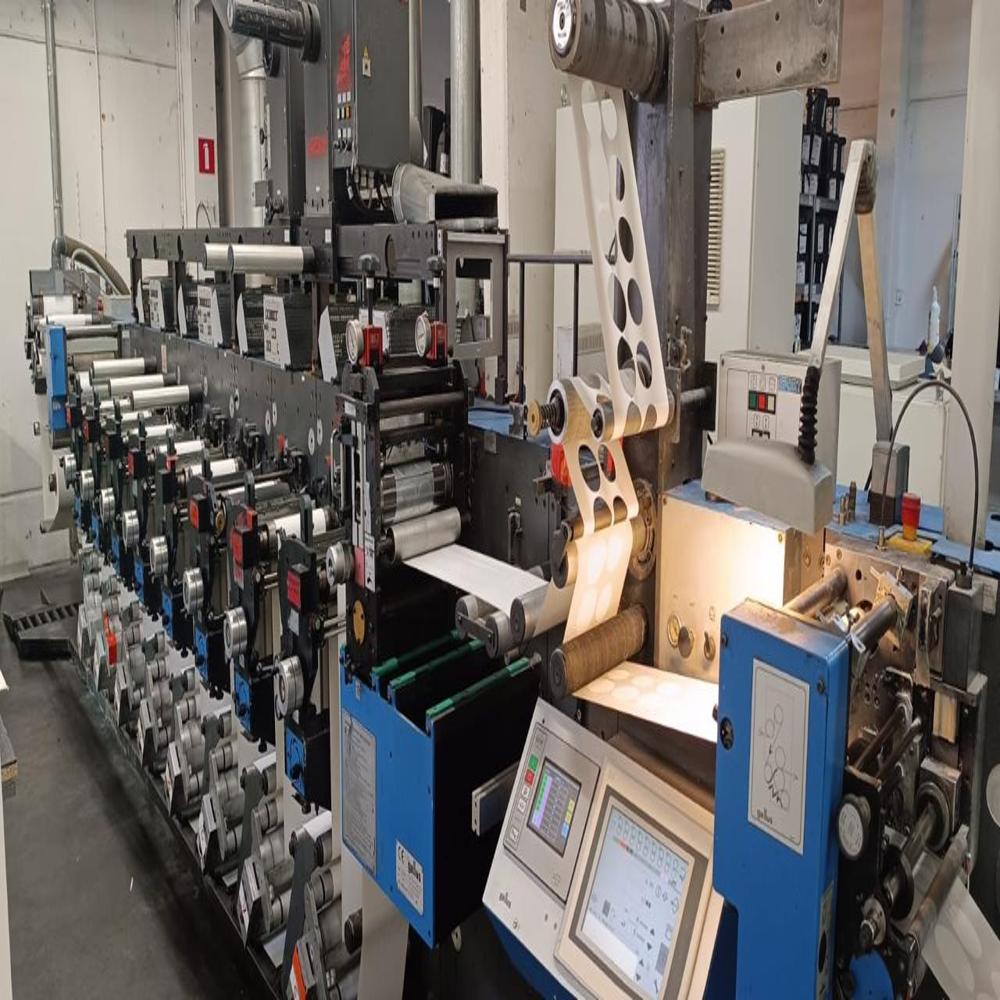

Used 2011 Gallus EM 280-8 Color Flexo Printing Machine,

* 40" Unwinder

* Web Alligner

* Splicing Table

* Both Side Web Cleaner

* Corona Treater

* Servo In Feed

* 8 Flexo Prinitng Stations

* 8 Anilox Chamber

* 8 GEW UV Lamps on Chilled Drum

* Water Chiller

* Movable Cold Foil on Rail

* Sensotec Auto Registration System in All Units

* 1 Rotary Screen Printing Unit

* 1 Die Cutting Station

* Gap Master

* BST Web Video Inspection

* Screen End Ring Mounting Device

* 1 Slitting Device

* Product Rewinder

* Waste Rewinder

* 8 Set of Print Cylinders

* 8 Magnetic Cylinders

* 14 Anilox Rollers

* In Excellent Condition

* In Daily Production at Europe.

Feel free to speak with us on :

Dhaval Vyas :+91 98250 73814

Mukesh Patel :+91 98799 41414

Visit us at :

www.shriexportimport.com

Advanced Multi-Color Printing

The Gallus EM 280-8 Color Flexo Machine features eight efficient color units, allowing sharp, vibrant, and consistent results on each run. Its modular structure enables easy integration and flexible printing setups, making it suitable for a wide range of label and packaging applications. From bold graphical designs to intricate details, it delivers exceptional quality across a variety of materials.

Leading-Edge Automation and Control

Equipped with a PLC-based touchscreen control system, the machine ensures user-friendly operation and precision across all processes. Automatic longitudinal and lateral register, auto web tension control, electronic web guiding, and the EPS system combine to support quick changeovers and minimize downtime, boosting your overall productivity and print reliability.

Efficient Workflow and Versatility

With servo-driven unwinder/rewinder, in-line rotary die cutting, integrated slitting, and remote diagnostics, the EM 280 streamlines your workflow. Capable of handling substrate thickness from 12 to 300 microns and printing at speeds up to 150 m/min, it effectively manages diverse label and packaging projects, from long runs to frequent job changes.

FAQ's of 2011 Gallus EM 280-8 Color Flexo Printing Machine:

Q: How does the Gallus EM 280-8 Color Flexo Printing Machine manage precise print registration?

A: The EM 280 features automatic longitudinal and lateral registration, assisted by an electronic web guide system, ensuring each color and image aligns perfectly during fast, continuous runs.

Q: What drying systems are included in this flexo press, and how do they benefit production?

A: This machine comes equipped with both hot air and UV drying units. These systems accelerate ink curing time, enabling high-speed production and compatibility with various ink types for labels and flexible packaging.

Q: When is the integrated rotary die cutting and slitting unit used during the printing process?

A: The in-line rotary die cutting station and integrated slitting module operate directly after printing. This setup allows labels or packaging to be cut, shaped, and separated without interrupting the printing flow, increasing efficiency and reducing manual handling.

Q: Where can the 2011 Gallus EM 280 be effectively utilized?

A: This press is suitable for businesses specializing in high-volume label production, flexible packaging, or self-adhesive materials, including manufacturers, service providers, wholesalers, and exporters seeking reliable and automated solutions.

Q: What advantages does the modular construction of the EM 280 provide?

A: Modular construction allows easy customization, rapid expansion, or changeover of printing units and modules, ensuring that users can adapt quickly to market demands or new client requirements.

Q: How does the machine handle various substrate types and thicknesses?

A: The press can process paper, films, foils, and laminates with substrate thickness ranging from 12 to 300 microns, making it highly versatile for different label and packaging applications.

Q: What are the benefits of the remote diagnostics feature on this printing machine?

A: Remote diagnostics provide timely service and technical support, enabling faster troubleshooting, minimized downtime, and efficient maintenance, which are crucial for uninterrupted high-volume printing operations.
